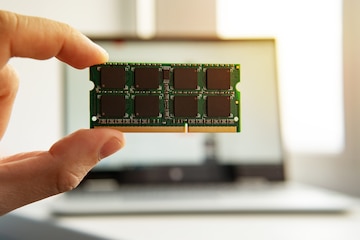

In today's digital age, computers and a variety of electronic devices have become an integral part of our lives. These devices can perform complex tasks, largely thanks to their "memory" capabilities—memory storage. Memory is a crucial component of computer hardware; it is responsible for storing data and program code so that the processor can access and execute them. Among the family of memory devices, volatile memory plays an essential role, offering fast data access speeds at the cost of data loss upon power shutdown.
Volatile memory is termed "volatile" because it possesses a unique characteristic: once power is disconnected, any data stored within it vanishes. This contrasts sharply with non-volatile storage devices such as hard drives or solid-state drives, which can retain data even after power is cut off. Despite this limitation, volatile memory remains an indispensable part of computer systems due to its high-speed read and write capabilities, providing the necessary speed and flexibility for temporary data storage.
The working principle of volatile memory involves the rapid switching operations of electronic circuits. They utilize the physical properties of electronic components to store and process data. For instance, Dynamic Random-Access Memory (DRAM) stores data using capacitors, which can hold electrical charges representing binary data as 0s and 1s. However, as capacitors naturally discharge over time, DRAM requires periodic refresh operations to maintain the stored data. This process is done automatically, ensuring continuous data availability. In contrast, Static Random-Access Memory (SRAM) employs a different design, using flip-flops or bistable circuits to store data, which do not require refreshing, thus offering even faster access speeds. Due to its high-speed nature, SRAM is commonly used in applications that demand high-speed data access, such as in CPU level 1 and level 2 caches.
Common Types of Volatile Memory
1. Dynamic Random-Access Memory (DRAM)

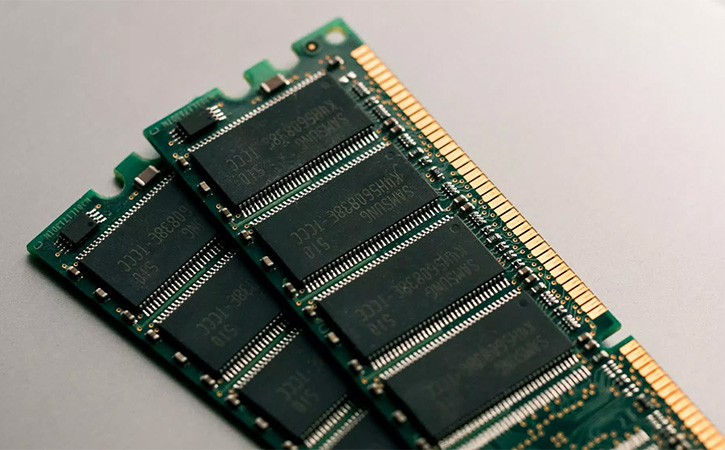

DRAM is one of the most common types of volatile memory and forms the primary memory of most computer systems. DRAM uses capacitors to store data, which need regular refreshing to prevent data loss. With technological advancements, DDR SDRAM and its derivatives (such as DDR2, DDR3, DDR4) have significantly improved performance by increasing clock frequencies and data transfer rates.
2. Static Random-Access Memory (SRAM)
SRAM offers faster access speeds compared to DRAM but at a higher cost, typically used in situations that require rapid data access, such as CPU caches. SRAM uses flip-flops to store data, so it does not need refreshing, but data is still lost upon power loss.
3. Pseudo Static Random-Access Memory (PSRAM)
PSRAM is an emerging memory technology that combines SRAM's interface protocol with DRAM's storage architecture. This design allows PSRAM to provide larger storage capacity and higher data transfer rates while maintaining lower costs and smaller dimensions, suitable for a variety of application scenarios.
4. Graphics-Oriented Dynamic Random-Access Memory (GDDR)
GDDR is a type of memory specifically designed for Graphics Processing Units (GPUs). It is optimized for graphics-intensive applications, offering higher bandwidth and faster data transfer speeds.
5. Low-Power Dynamic Random-Access Memory (LPDDR)
LPDDR is a type of memory designed for mobile devices, focusing on reducing power consumption while maintaining high performance to extend the battery life of devices.
Recommended IC Models
When choosing volatile memory, considering the specific application requirements is crucial. For example, the XC95144XL-10TQG144C, a high-performance flash-based CPLD IC, with its 3200 available gates and 5ns propagation delay, is highly suitable for high-performance, low-voltage applications. Samsung's K4B2G1646F-BYMA samsung-semiconductor-inc DDR3 DRAM chip offers a solution for applications requiring high-speed data transfer. Winbond's W25Q128JVSIQ SPI flash memory chip, with its fast erase and programming operations and low power consumption features, is an ideal choice for embedded systems and digital devices. The STM32F030K6T6 ARM Cortex-M0 MCU and the STM8S003F3P6TR 8-bit microcontroller cater to applications that require embedded processing capabilities and are cost-sensitive with high durability demands.
Conclusion
Although volatile memory loses data after power loss, it is indispensable for applications that require fast read and write speeds. With continuous technological advancements, new types of volatile memory such as PSRAM and LPDDR are emerging, offering higher performance and lower power consumption to meet the diverse needs of modern electronic devices. Understanding the different types and characteristics of volatile memory is crucial for selecting the appropriate storage solution.
