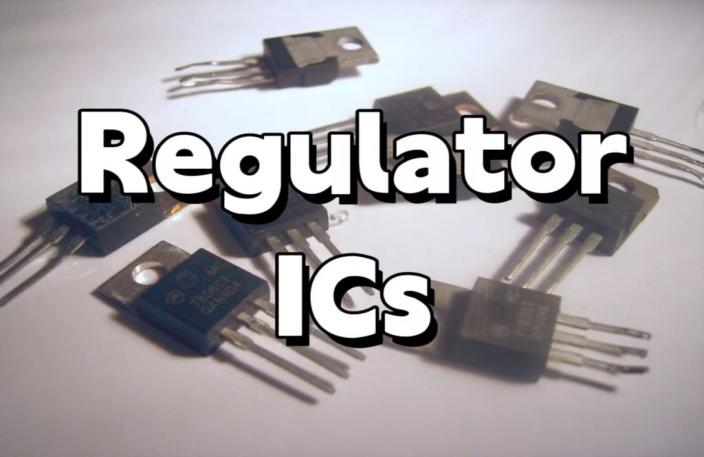

In modern electronic devices, a stable supply of voltage is crucial. Regulator chips, also known as voltage regulators or power management chips, are key components in electronic circuits designed to maintain a stable output of voltage and current, ensuring a constant voltage supply under varying load conditions. These chips play a vital role in a wide range of electronic devices, from simple battery-powered devices to complex industrial control systems.

Working Principle

A regulator chip is an integrated circuit that achieves stable voltage output through internal circuits, including feedback circuits, comparators, amplifiers, and power output stages. In simple terms, regulator ics operate based on the principle of negative feedback control. When there are changes in the input voltage or load, the voltage regulator chip automatically adjusts the current to maintain a constant output voltage. This automatic regulation mechanism ensures that electronic devices receive a stable voltage supply under various conditions. The core components include a reference voltage source, error amplifier, and power output stage.

Classification and Popular Models

Regulators are mainly divided into two categories: Linear Regulators and Switching Regulators.

1. Linear Regulators: Linear regulators control the conduction of the pass element in a linear manner to regulate the output voltage. LDOs use transistors or FETs operating in their linear region to drop excess voltage from the input voltage, producing a regulated output voltage. These regulators are less efficient but provide stable output voltage and are suitable for applications with low current demand. Examples include models from Texas Instruments (TI) such as TPS7A47 and TPS7A49, which are characterized by high voltage and ultra-low noise, making them suitable for applications sensitive to noise and requiring precise voltage regulation.

2. Switching Regulators: Switching regulators adjust the output voltage by controlling the opening and closing of switches. They convert energy through switched power transistors, are more efficient, and are suitable for applications requiring high power output.

In addition to the aforementioned TPS7A47 and TPS7A49, there are many other popular regulator chip models, each with unique features and application scenarios.

● TL780 Series: Capable of providing a larger load current (1.5A) and using unique temperature compensation technology to improve accuracy. Suitable for voltage regulation in large appliances.

● TPS7A89: A dual-channel, low-noise, high-current output LDO, each channel can provide 2A of current, with a wide input voltage range (1.4V - 6.5V) and adjustable output voltage function. Suitable for applications with high power supply requirements.

● LT3080 Series: A 1.1A low-leakage linear regulator that can be used in parallel to increase output current or dissipate heat on surface-mount boards. Suitable for occasions requiring high reliability and stability.

● TC1015 Series: Introduced by Telcom Semiconductor, this series of CMOS LDO Regulators is all made using CMOS process technology, with a ground current consumption approaching zero, making them more suitable for portable electronic products.

Application Fields

Regulator integrated components are widely used in various electronic devices and systems, including but not limited to computers, mobile phones, televisions, industrial control, and communication fields. Especially in portable devices, wearable devices, and Internet of Things devices that require a stable voltage supply, the role of voltage regulator chips is particularly prominent.

In the computer field, voltage regulator chips ensure the stable operation of core components such as CPUs and memory; in the mobile phone field, they ensure voltage stability during charging and use; in the industrial control field, they ensure the reliable operation of various automated equipment.

Development Trends and Challenges

With the continuous development of technology, regulator chips are evolving towards high performance, low power consumption, integration, and miniaturization. At the same time, safety and reliability are significant challenges faced by voltage regulator chips. To meet these challenges, manufacturers are continuously developing new technologies and processes to improve the performance and reliability of voltage regulator chips.

In summary, regulator ics are indispensable components in modern electronic systems. They ensure the normal operation and performance of electronic devices by maintaining stable voltage and current output. As technology advances, regulator chips are also continuously updated to adapt to higher efficiency and more complex application requirements.
