STM32WB Series MCU: Technological Innovation and Application Expansion

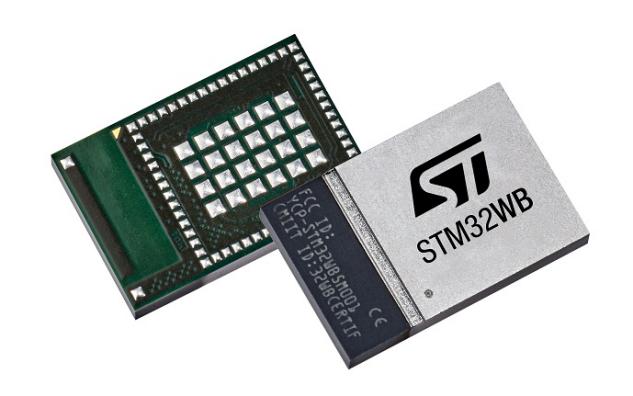

The STM32WB series is a high-performance, low-power dual-core wireless microcontroller family introduced by STMicroelectronics. This STM32WB mcu series integrates a dual-core processor comprising Cortex-M4 and Cortex-M0+ cores, supporting certified protocol stacks for Bluetooth Low Energy (BLE) 5.0, Zigbee 3.0, and OpenThread (IEEE 802.15.4). The Cortex-M4 core handles the main application processing, while the Cortex-M0+ core is dedicated to wireless communication tasks. This architecture significantly enhances system performance and reduces power consumption. Additionally, the STM32WB series supports multiple wireless protocols, including Zigbee 3.0 and Thread 1.1, enabling multi-protocol coexistence. Since its launch, the STM32WB series has quickly become a popular choice in fields such as the Internet of Things (IoT), smart home technology, and industrial automation due to its powerful capabilities and flexible configuration.
Features and Principles of the STM32WB Series
The core strengths of the STM32WB series lie in its dual-core architecture and multi-protocol support. The Cortex-M4 core is responsible for handling complex computational tasks and application logic, while the Cortex-M0+ core focuses on low-power management and wireless communication. This architectural design not only improves the overall efficiency of the system but also reduces power consumption, making it particularly suitable for applications with high battery life requirements.
In addition, the STM32WB series features the following key characteristics:
1. Multi-protocol Support: Supports BLE, Zigbee, and OpenThread protocols.
2. Low-Power Design: Utilizes advanced ultra-low-power processes and offers multiple low-power modes.
3. Rich Peripheral Interfaces: Includes ADC, SPI, I2C, USART, and more to meet a variety of application needs.
4. High Integration: Integrates the RF front-end and power management modules, reducing the need for external components.
Key Application Areas of the STM32WB Series
The STM32WB MCU series, with its high performance, low power consumption, and robust wireless connectivity, is widely used in various wireless scenarios involving 802.15.4, including industrial gateways, telecom equipment, home automation, household appliances, smart consumer electronics, and AI.
1. Smart Home: Used in smart door locks, smart lighting, and sensor devices, supporting multiple wireless protocols to achieve seamless device connectivity.
2. Industrial Automation: Suitable for sensor networks, industrial gateways, and remote monitoring devices, supporting low power consumption and high reliability.
3. Medical Devices: Used in wearable health monitoring devices, such as smartwatches and blood glucose meters, supporting low-power Bluetooth.
4. Smart City: Used in environmental monitoring, smart parking, and smart grid applications.
Representative Models and Comparative Analysis of the STM32WB Series
The STM32WB55 and STM32WB50 are suitable for high-performance and complex applications, while the STM32WB35 and STM32WB30 are more appropriate for cost- and power-sensitive scenarios. Below is an introduction and comparison of several representative models in the STM32WB series:
Models | Flash (KB) | RAM (KB) | Supported Protocols | Features |
1024 | 256 | BLE 5.0, Zigbee, OpenThread | High performance, supports 2 Mbps BLE | |
512 | 256 | BLE 1.0, Zigbee | Cost-optimized, suitable for mid-to-low-end applications | |
256 | 96 | BLE 1.0, Zigbee | Low power consumption, suitable for battery-powered devices | |
512 | 96 | BLE 1.0, Zigbee | Lowest cost, suitable for minimalist designs |
Selection and Usage Considerations for the STM32WB Series
1. Performance Requirements: Choose the appropriate model based on the performance needs of the application scenario to ensure stable system operation.
2. Power Consumption: For battery-powered devices, prioritize low-power modes to extend device lifespan.
3. Security: In applications involving data transmission, fully utilize the built-in hardware encryption engine of the STM32WB series to ensure data security.
4. Development Tools: STM32CubeMX and STM32CubeIDE provide a complete development process from configuration to programming. Developers should master these tools to improve development efficiency.
Similar Products from Other Manufacturers
1. Nordic nRF52 Series: Supports BLE with low-power and high-performance features, suitable for applications requiring low power consumption and high performance.
2. Silicon Labs EFR32 Series: Supports multiple wireless protocols and is suitable for IoT and industrial applications.
3. Texas Instruments CC2640R2F & CC2650 Series: Supports BLE and Zigbee, suitable for low-power and high-integration needs.
4. Microchip ATmega328P Series: Although it does not support advanced wireless protocols like BLE, it occupies a niche in entry-level IoT applications with its low power consumption and low cost.
5. Espressif ESP32-C3: Supports BLE and Wi-Fi, suitable for multi-protocol and cost-sensitive applications.
Conclusion
The STM32WB series mcu, with its dual-core architecture, multi-protocol support, and low-power design, is an ideal mcu ic choice for wireless IoT applications. Whether in smart home technology, industrial automation, or medical devices, the STM32WB series can provide flexible and efficient ic solutions. By selecting the appropriate model and optimizing the design, developers can fully leverage its powerful capabilities to meet the needs of various application scenarios.
